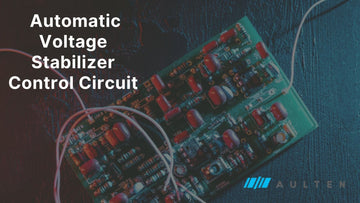

Automatic Voltage Stabilizer Control Circuit – A Complete Guide for Beginners
Trying to understand how an automatic voltage stabilizer control circuit works? You’re in the right place. Whether you're curious about its internal design or planning to build one yourself, this comprehensive guide covers every detail in a simple, beginner-friendly format.
Voltage fluctuations are a frequent issue in residential and industrial areas, particularly in countries with an inconsistent power supply. These fluctuations can harm electronics like air conditioners, televisions, refrigerators, and even computers. An automatic voltage stabilizer control circuit helps prevent such damage by maintaining a stable voltage output even when the input varies dramatically.
In this article, you'll learn about the purpose and working principle of a voltage stabilizer, understand key circuit components, and learn how to read a stabilizer diagram. Whether you're an enthusiast or an end-user, this guide will give you complete clarity.
What is an Automatic Voltage Stabilizer?
An automatic voltage stabilizer is an electrical device that regulates voltage levels to keep them within a safe range. Its primary function is to protect your appliances by supplying a steady voltage output, regardless of fluctuations in the input supply.
When voltage drops below or rises above acceptable levels, the automatic voltage stabilizer control circuit adjusts the output using relays, transformers, or servo motors. You can find different types of these stabilizers, including servo voltage corrector, designed for precise voltage management.
Differences between Manual and Automatic Stabilizers:
-
Manual stabilizers require user intervention to change voltage levels; automatic ones adjust themselves without any user input.
-
Automatic stabilizers are faster, safer, and more precise.
-
They are ideal for modern appliances that need a consistent and reliable power source. For instance, a stabilizer for fridge ensures refrigerators operate smoothly despite voltage variations.
Common Applications of Automatic Voltage Stabilizers:
-
Air conditioners in residential and office settings
-
Refrigerators and deep freezers
-
Home theaters and televisions
-
Computers, modems, and routers
-
Industrial machinery and medical devices
The core functionality of these systems is governed by the automatic voltage stabilizer control circuit, which makes intelligent decisions to protect your equipment. You can explore options like multi-purpose stabilizers that cater to various appliances.
Working Principle of Automatic Voltage Stabilizer
The working principle of an automatic voltage stabilizer revolves around continuous voltage detection and real-time regulation.
When a fluctuating voltage is detected, the automatic voltage stabilizer control circuit measures it against a fixed reference value. If the voltage is too low or too high, it triggers a correction mechanism to adjust the voltage and bring it back within a safe range.
How It Works:
-
The input AC voltage is sensed and scaled down using a voltage divider.
-
This voltage is fed into a comparator or a microcontroller.
-
If the sensed voltage is lower or higher than the reference, a control signal is sent.
-
This signal energizes relays or servo motors connected to transformer windings.
-
The relay or motor switches to a tap on the transformer that supplies the appropriate voltage.
This working principle ensures that connected devices always receive the correct operating voltage, regardless of how unstable the input power is.
The automatic voltage stabilizer control circuit often includes delay timers, overload protection, and under/over-voltage cutoffs to further enhance safety and reliability. You can learn more about different types of stabilizer designs to suit your needs.
Circuit Components Used
Understanding the circuit components of an automatic voltage stabilizer control circuit is crucial for both building and troubleshooting one.
Each component plays a specific role in voltage sensing, comparison, and correction. Together, these parts form the brain and nervous system of the stabilizer.
Main Circuit Components:
-
Transformer: Used for stepping up or stepping down voltage. Most automatic stabilizers use auto-transformers or toroidal transformers for compact and efficient performance.
-
Op-Amps (e.g., LM324): These are used as voltage comparators in analog-based stabilizers. They compare the input voltage with predefined reference voltages.
-
Microcontroller (e.g., PIC16F873A or Arduino): Processes voltage data and controls switching logic in digital stabilizers.
-
Relays: Act as electrically operated switches to connect the appropriate transformer tap based on voltage conditions.
-
Bridge Rectifier: Converts AC input to DC for powering internal control logic and sensing circuits.
-
Voltage Divider: Reduces high voltage to a measurable value suitable for op-amps or microcontrollers.
-
Capacitors and Resistors: Help filter noise and provide stable signal flow.
-
Transistors: Used to amplify and switch signals to drive relays.
Understanding these circuit components will help you appreciate the complexity and intelligence behind every automatic voltage stabilizer control circuit.
Stabilizer Circuit Diagram Explained
A stabilizer diagram provides a visual representation of the internal wiring and structure of a voltage stabilizer.
By analyzing a stabilizer diagram, you can identify the flow of current, the switching logic, and how each component interacts with the others. Whether you're designing a stabilizer or trying to repair one, reading the diagram is essential.
Sections Typically Found in a Stabilizer Circuit Diagram:
-
Input Sensing Section: Includes a voltage divider and comparator to monitor real-time voltage.
-
Control Unit: Features op-amps or a microcontroller that decides whether to trigger corrective action.
-
Switching Unit: Relays or motors switch the transformer taps depending on the signal from the control unit.
-
Protection Unit: Includes delay timers, surge protection, and cutoff mechanisms for safety.
-
Output Section: Delivers regulated voltage to the connected appliance.
Reading and understanding a stabilizer diagram not only helps with DIY projects but also with basic diagnostics when issues arise.
Types of Control Circuits
There are different approaches to designing an automatic voltage stabilizer control circuit, and your choice depends on your application and skill level.
1. Analog Comparator-Based Circuits:
-
Use voltage comparators like the LM324 to monitor input voltage.
-
Switch relays based on pre-set voltage thresholds.
-
Simple design, suitable for low-cost and beginner-friendly stabilizers.
2. Microcontroller-Based Circuits:
-
Use programmable chips like PIC, ATmega, or Arduino.
-
Offer precise control, multiple thresholds, real-time monitoring, and display outputs.
-
Ideal for advanced applications where smart monitoring is preferred.
Both types follow the same working principle but differ in accuracy, cost, and complexity.
An analog circuit is easier to build, while a microcontroller-based automatic voltage stabilizer control circuit is more flexible and accurate for modern digital needs.
DIY vs Commercial Stabilizers – Which One to Choose?
Many tech enthusiasts prefer building their own automatic voltage stabilizer control circuit for learning and customization. However, for most homeowners and small businesses, buying a branded stabilizer is more practical.
Why Choose DIY?
-
Hands-on learning about electronics
-
Full control over circuit design
-
Cost savings (sometimes)
y Choose Commercial Brands Like Aulten?
-
Professionally designed circuit components with higher precision
-
Pre-tested for safety, efficiency, and durability
-
Reliable customer service and warranties
-
Certified designs that meet industry standards
If you want plug-and-play convenience with long-term reliability, branded stabilizers like Aulten’s are the right choice. If you're building for a hobby or experiment, DIY is an educational route.
Best Practices for Installing and Maintaining Voltage Stabilizers
To ensure your automatic voltage stabilizer control circuit works effectively and lasts longer, you must follow proper installation and maintenance guidelines.
Installation Tips:
-
Mount the stabilizer in a cool, dry place to avoid heat and moisture damage.
-
Ensure the total connected load doesn't exceed the stabilizer’s rated capacity.
-
Use proper earthing to avoid short circuits or electrical shock.
-
Keep it at eye level to easily observe indicators and troubleshoot if needed.
Maintenance Guidelines:
-
Inspect internal wiring and components every 6 to 12 months.
-
Clean dust from vents and circuit board to avoid overheating.
-
Test voltage output periodically using a multimeter.
-
Listen for abnormal buzzing or click sounds that may signal relay faults.
A well-maintained automatic voltage stabilizer control circuit ensures safety and uninterrupted appliance performance.
Choose Aulten for Reliable Stabilizer Solutions
If you're looking for a high-quality stabilizer that blends durability with advanced technology, Aulten is your trusted choice.
Aulten stabilizers are:
-
Designed with premium automatic voltage stabilizer control circuits
-
Built using high-grade circuit components for superior efficiency
-
Backed by customer support and industry-grade safety standards
Explore Aulten's collection today and protect your valuable appliances with confidence.
Conclusion
An automatic voltage stabilizer control circuit is a smart, compact, and highly efficient solution to combat voltage fluctuations. It works silently in the background, adjusting the voltage in real-time to keep your electronics safe.
Understanding its working principle, recognizing key circuit components, and being able to read a stabilizer diagram can help you make better decisions—whether you're buying one or building your own.
Whether you're an engineer, student, or homeowner, knowing how these systems function adds great value to your technical awareness.
Frequently Asked Questions
Q1. How does the control circuit in a stabilizer work?
The automatic voltage stabilizer control circuit senses input voltage using voltage dividers, compares it with a reference, and activates relays or servo motors to adjust the output voltage.
Q2. What are the components of a voltage stabilizer circuit?
Core circuit components include transformers, op-amps or microcontrollers, relays, rectifiers, capacitors, voltage dividers, and transistors.
Q3. Can I build an automatic voltage stabilizer?
Yes. With a basic understanding of electronics, you can build an automatic stabilizer using a comparator-based or microcontroller-based control circuit.
Q4. What is the role of a microcontroller in a stabilizer?
It monitors voltage in real-time, processes logic, and switches output levels automatically, increasing accuracy and adaptability.
Q5. What does a stabilizer diagram show?
A stabilizer diagram visually represents how components are connected, from input sensing to voltage correction and output regulation.
Q6. How often should a stabilizer be maintained?
It should be inspected and cleaned every 6–12 months to ensure proper functioning and to detect any signs of wear.
Q7. What kind of appliances need a stabilizer?
High-value and voltage-sensitive appliances like refrigerators, air conditioners, TVs, and computers benefit most from stabilizers.
Q8. Is an automatic voltage stabilizer better than a manual one?
Yes. An automatic stabilizer responds faster, doesn't require human intervention, and offers more reliable voltage protection.
