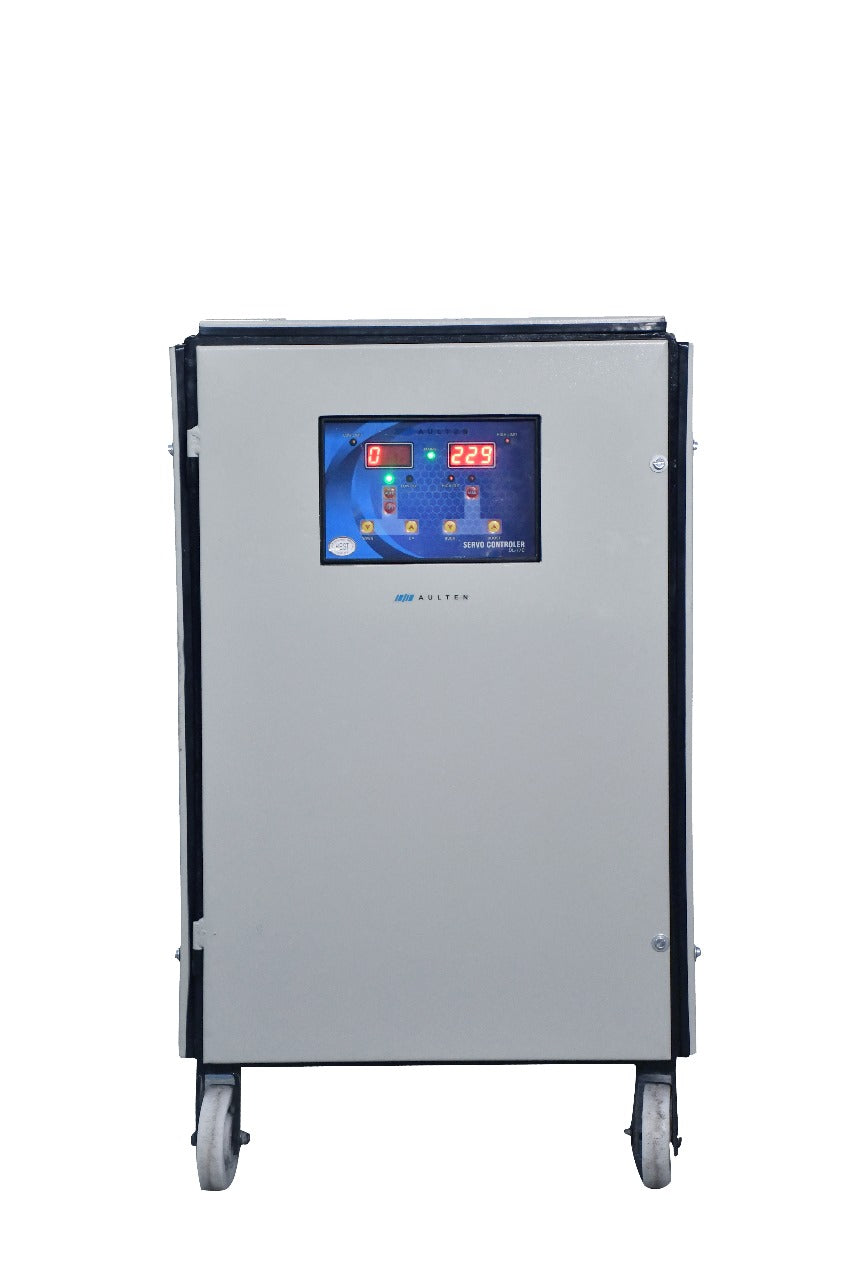

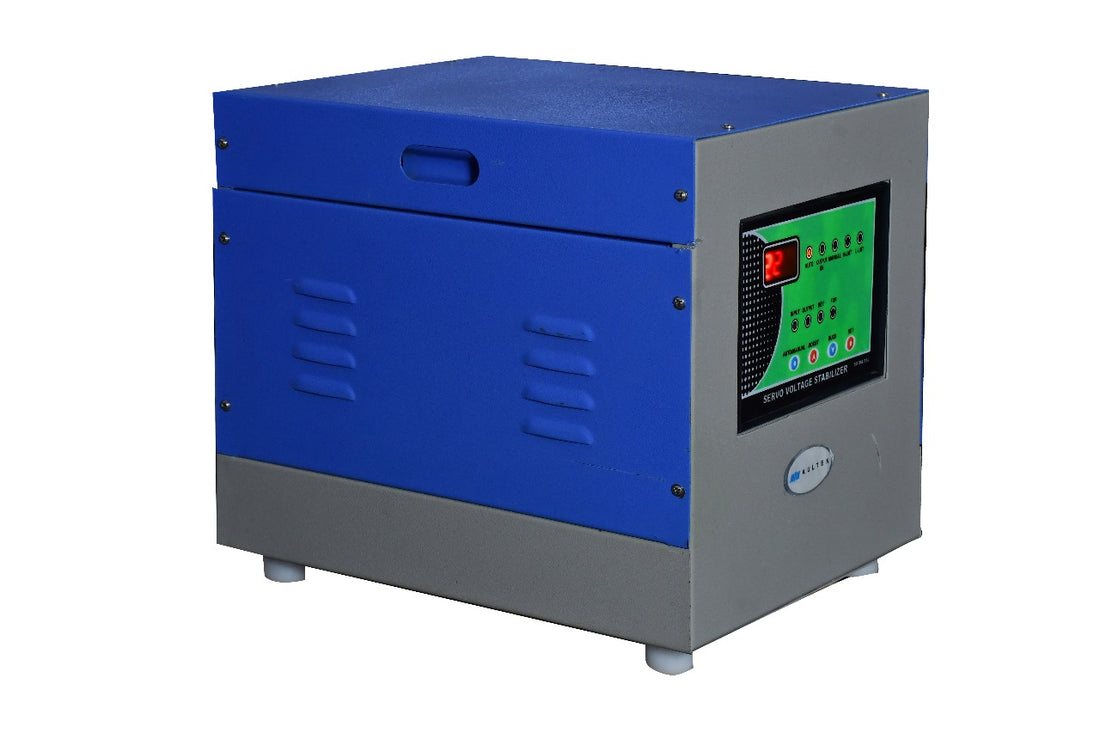

Servo Voltage Corrector
The Servo Stabilizers are ideal choice for used as Mains Voltage Stabilizer, they provide continuous and precise voltage regulation without any break in supply. AULTEN Stabilizers are highly power efficient having less than 2% no load losses.
If your unit is suffering from low/high/unbalanced voltage, you need to install a stabilizer soon. Industrial units having acute/ higher failure rate of electrical equipments such as bulb, tubes, chokes, starter, contractor coils, motors etc., should verify that it may be due to voltage variation (esp. High voltage). You may note down hourly readings of incoming voltage for a few days continuously. If you find that input voltage is lower or higher then 230V (single phase)/ 400V (three phase) even for few hours day, then you definitely require a stabilizer.
Servo Voltage Corrector Technical Specifications
| Specification | 3KVA to 30KVA (Single Phase) | 5 KVA to 1000 KVA (Three Phase) |
| Phase | Single Phase | Three Phase / Unbalance Type |
| Voltage Input | 110/140/170/190-270V | 190/240/300/330-470V |
| Frequency Input | 50Hz | 50Hz |
| Voltage Output | 230 V ± 1% | 400 V ± 1% |
| Delay Output | 0 - 10 sec | 0 - 10 sec |
| Over Volt Output | AC 250V ± 5V | AC 440V ± 5V |
| Low Volt Output | AC 180V ± 5V | AC 311V ± 5V |
| By pass Protection | Provided (Optional) | Provided (Optional) |
| Over Load Trip Protection | Provided | Provided (Optional) |
| Cooling System | Air (Cooled) | Air Cooled / Oil Cooled |
| Full Load Efficiency | Better Than 95% | Better Than 95% |
| No Load Efficiency | Less Than 2% of Rated Load | Less Than 2% of Rated Load |
| Temperature | 5ºC - 40ºC | 5ºC - 40 C |
| Humidity | Upto 95% | Upto 95% |
| Floor Mounting | Floor Mounting | Floor Mounting |
| Class Insulation | B Class | B Class |
| Duty Cycle | 24 hr. Continuous Operation |
| Wave Form Distortion | Nil True to Input |
| Response Time | Less Than 10ms |
| Correction Speed | Upto 70V per sec. (Dependent on Input Voltage & Capacity) |
| Correction Method | Step-leess Correction using Auto Variable Transformer |
| Suitability | Suitable for all Power Factor Loads |
| Break Down Strength & IR | 300V AC for 2minutes, Greater than 50 Mega Ohms at 500V DC |
| No Load Loss | No Load Loss Less than 0.4% |
| Type & Suitability | Unbalanced Supply, 3 Phase Unbalanced |
