AULTEN 5 KVA (170V-270V) Single Phase Air Cooled Servo Voltage Correctors

Regular price Rs. 18,300
Sale price Rs. 18,300 Regular price Rs. 18,100
Unit price
Save 0%
Tax included.
Rs. 62,800.00 Rs. 65,400.00
Rs. 44,000.00
Rs. 35,500.00
Rs. 26,600.00
Rs. 79,000.00 Rs. 81,900.00
Rs. 116,100.00
Rs. 60,400.00 Rs. 62,900.00
Rs. 57,400.00 Rs. 60,000.00
Rs. 65,700.00 Rs. 68,400.00
Rs. 75,600.00
Rs. 522,000.00
Rs. 365,200.00 Rs. 3,622,500.00
Rs. 251,900.00 Rs. 262,400.00
Rs. 212,300.00 Rs. 221,200.00
Rs. 212,400.00
Rs. 1,456,700.00
Rs. 54,500.00 Rs. 56,700.00
Rs. 571,000.00
Rs. 404,100.00

  • Estimated Delivery:Jun 11 - Jun 15

SKU: ALT-SVC-005

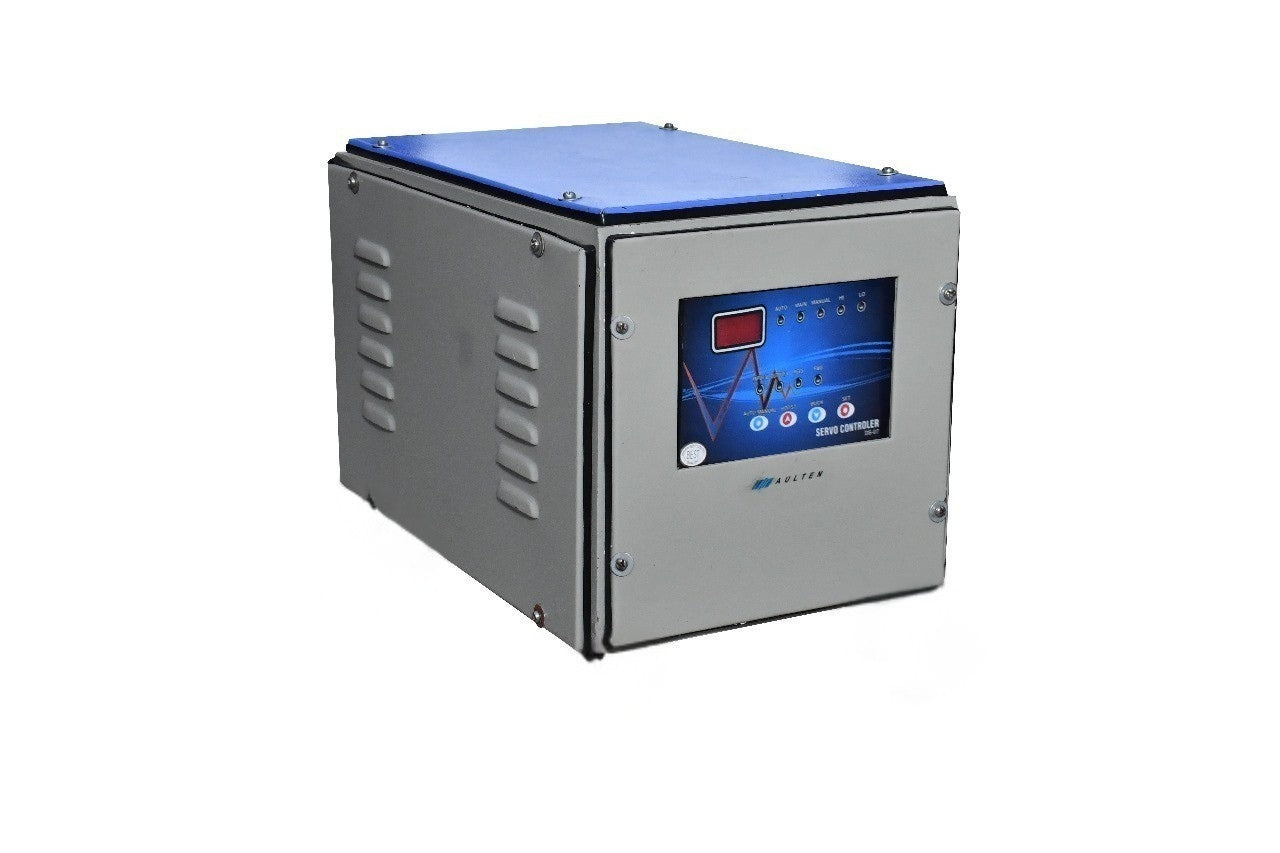

AULTEN 5 KVA (170V-270V) Single Phase Air Cooled Servo Voltage Correctors

AULTEN 5 KVA (170V-270V) Single Phase Air Cooled Servo Voltage Correctors

Regular price Rs. 18,300
Sale price Rs. 18,300 Regular price Rs. 18,100
Unit price

100% Genuine Products

Easy EMI Payment Mode

Aulten Support & Warranty

Free Shipping

  • Product details

  • Manufacturer: Aulten
  • Country of Origin: India
  • One-Year Repair Warranty for Manufacturing Defects.
  • Images are for representation purposes only actual product may vary
  • Full protection design for Over Voltage, Under Voltage, and Short Circuit, to protect your equipment
  • Multifunctional Digital Display showing Output Voltage (OP), Input Voltage (IP), High Voltage (Hi), Low Voltage (Lo), 5 Second Initial Time Delay Countdown, you can monitor the voltage performance in real-time mainline stabilizer home.
  • Complete Protection for all your appliances with inbuilt High Voltage Cut, Low Voltage Cut, Short Circuit Protection, enhancing their performance and life cycle, automatically cuts the power supply during huge surges and fluctuations.

Product Benefits

Create an icon of initial Time delay

Initial Time Delay

It features an intelligent initial time delay of 5–10 seconds that prevents immediate restarting of connected appliances after power cuts or fluctuations, protecting them from sudden electrical surges.

Create a flat vector cutoff protection icon with a shield shape in blue and orange. Inside, show a digital panel with an up blue arrow (HIGH CUT), down red arrow (LOW CUT), and a central voltage level bar. Add a plug icon and text “CUT OFF PROTECTION” below. Grey background, clean, modern, high-quality.

High & Low Cutt Off

The stabilizer is equipped with an intelligent high and low voltage cut-off feature that automatically disconnects the power supply when input voltage goes beyond safe operating limits. This protects connected appliances from damage caused by extreme voltage fluctuations. Once the voltage stabilizes within the safe range, the power supply is restored automatically, ensuring reliable and safe operation at all times.

try to make it a bit attractive

Multifunctional Digital Display

A stabilizer that shows everything happening with the stabilizer, like real-time output voltage being supplied through the stabilizer, and also warns you in case of high and low voltage surge protection.

Technical Specifications

AULTEN 5 KVA (170V-270V) Single Phase Air Cooled Servo Voltage Correctors
Specification
5 KVA (Single Phase)
Phase
Single Phase
Voltage Input
170V-270V
Frequency Input
50Hz
Delay Output
0 - 10 sec
Over Load Trip Protection
Provided (Optional)
Cooling System
Air Cooled
Full Load Efficiency
Better Than 95%
No Load Efficiency
Less Than 2% of Rated Load
Floor Mounting
Floor Mounting
Class Insulation
B Class
Duty Cycle
24 hr. Continuous Operation
Wave Form Distortion
Nil True to Input
Response Time
Less Than 10ms
Correction Speed
Upto 70V per sec. (Dependent on Input Voltage & Capacity)
Correction Method
Step-less Correction using Auto Variable Transformer
Suitability
Suitable for all Power Factor Loads
Break Down Strength & IR
300V AC for 2minutes, Greater than 50 Mega Ohms at 500V DC
No Load Loss
No Load Loss Less than 0.4%
Type & Suitability
Unbalanced Supply, Ph
